David Y.If you ride a bike in New York City there are certain rules you must follow to avoid the cops, and their annoying tickets, and also just to travel a little more safely around the busy streets. When i was checking over
Griffin, i was looking for the following:
1. Adequate Brakes (check)
2. Working Horn or Bell (check)
3. Working Headlight (nope)
4. Working Tail-light (nope)
(for more on these rules just click here)i knew that if i ever wanted to legally ride in Critical Mass i would have to obtain a working headlight, and tail-light for my bike. i knew i wanted one of the generator light sets, mainly because of the vintage feel, and how true it was to the bike's age, but also because it seemed a little more green not having to worry about batteries and their disposal. i ordered the
Dynamo Lighting Set online (from
Azatlan Bicycle). When the package arrived it came with no instructions, just all the parts. i waited a couple of days before i decided to call a couple of bike shops to get quotes on instillation of the parts. i was informed by both that it would be a minimum of 40$, and they would have to keep it over night for proper installment (apparently they are tricky to put on, and very senitive). So after hearing this i decided, "if those chuckle-heads could do it, then so could i!" and i did! So i have decided to take a moment and show you how to install a, "
Tung Lin: Dynamo Lighting Set"
1. Tools used: these are the tools i used to apply all the nuts/bolts.

2. Parts: these are all the parts that came in the box.

3. Instillation:

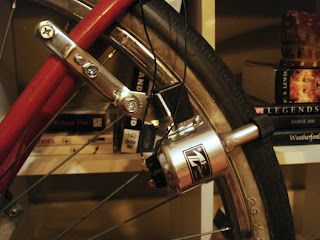

- A.) You are going to have to apply the generator as i have, allowing the black rotator to actually touch the back tire. test it by lifting the back of the bike and running the pedals to make sure it is spinning. see image below.

- B.) i installed the back light first, fitting it where i wanted it to be seen. Then i applied the wire to the bottom connection as shown.

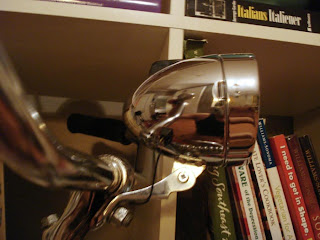

- C.) i then installed the front head light to the handle bars making sure it was on tightly, then i ran the small wire (weaving it along the bikes bars to the top back connection) and connecting it like i did the back light.

4. Test: Lift the back of the bike again, and spin the pedals to make sure the lights are all coming on, if they are not then you need to check your connections.
5. Enjoy: Take your whip for a spin!
